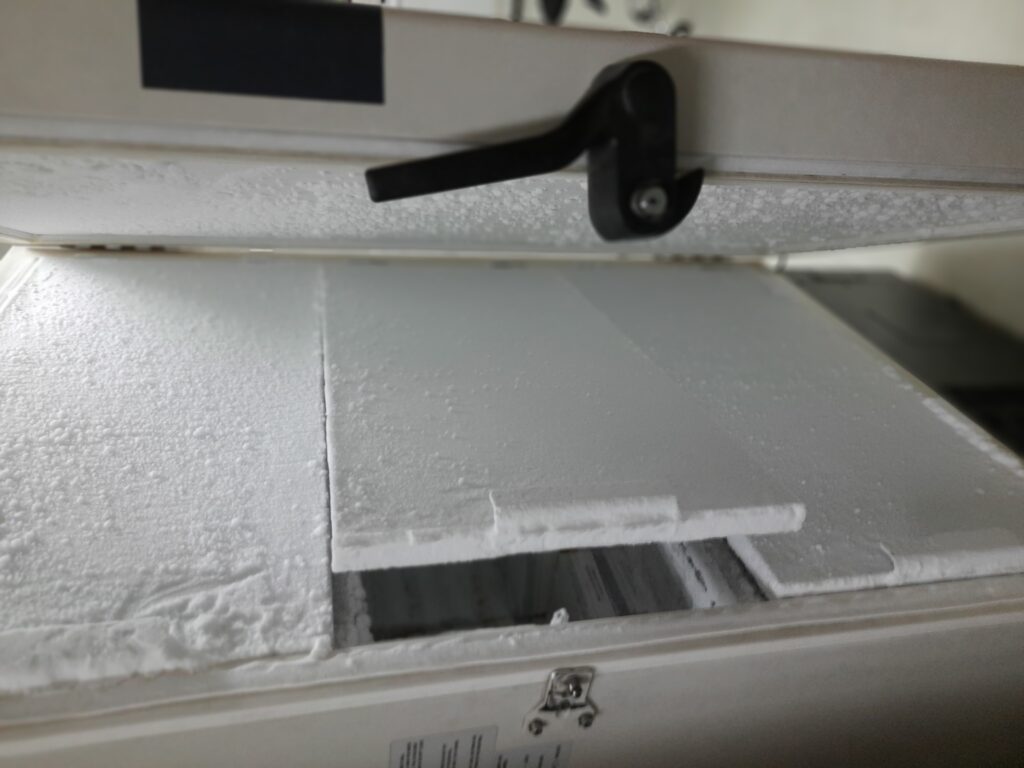

Ultra-Low Temperature Freezer- Introduction, Principle, Handling Procedure, Application, and Keynotes

Introduction

An Ultra-Low Temperature (ULT) Freezer typically operates within the temperature range of -40 °C to -86⁰C to safely preserve critical biological samples over long periods.

Purpose: Protects highly sensitive biological materials from thermal degradation.
Standard Settings: Most laboratories set their units to a standard of -80 °C.
Configurations: Available in both upright (easy access) and chest (superior thermal efficiency) models.

Operating Principle

ULT freezers rely on a two-stage cascade refrigeration system to achieve extreme temperatures:

Stage One (High-Stage): A standard compressor cycle cools a central heat exchanger down to approximately -40 °C.
Stage Two (Low-Stage): A specialized low-temperature compressor cycle takes heat from the sample chamber and transfers it to the first cycle’s heat exchanger.
Insulation: Uses high-density polyurethane foam or vacuum insulation panels to minimize heat gain from the external room environment.

Handling Procedure

Personal Protective Equipment (PPE): Always wear heavy insulated cryogenic gloves and safety glasses to prevent frostbite.
Door Management: Minimize door opening times to prevent ambient moisture from entering and forming ice.
Sample Loading: Inventory samples systematically using internal racks and boxes to reduce search time.
Maintenance: Regularly scrape away internal frost buildup and clean the condenser filter every two to three months.
Vacuum Equalization: Wait a few minutes before reopening a recently closed door to let the vacuum relief valve normalize internal pressure.

Applications

Molecular Biology: Long-term storage of DNA, RNA, oligonucleotides, and extracted proteins.
Clinical Medicine: Preservation of viral and bacterial samples, blood plasma, and tissue biopsies.
Vaccine Storage: Distribution holding for temperature-sensitive mRNA vaccines and biologics.
Industrial Testing: Material stress testing and preservation of specialized chemical compounds.

Keynotes

Ambient Conditions: Keep the freezer in a well-ventilated, air-conditioned room (<25⁰ C) to prevent compressor burnout.
Backup Power: Connect the unit directly to an emergency generator circuit to ensure operation during power grid failures.
Backup CO2/LN2 Systems: Install liquid carbon dioxide or liquid nitrogen backup injection kits for automated emergency cooling.
Clearance: Maintain 15-20 cm of clearance around the sides and back for proper heat dissipation.
